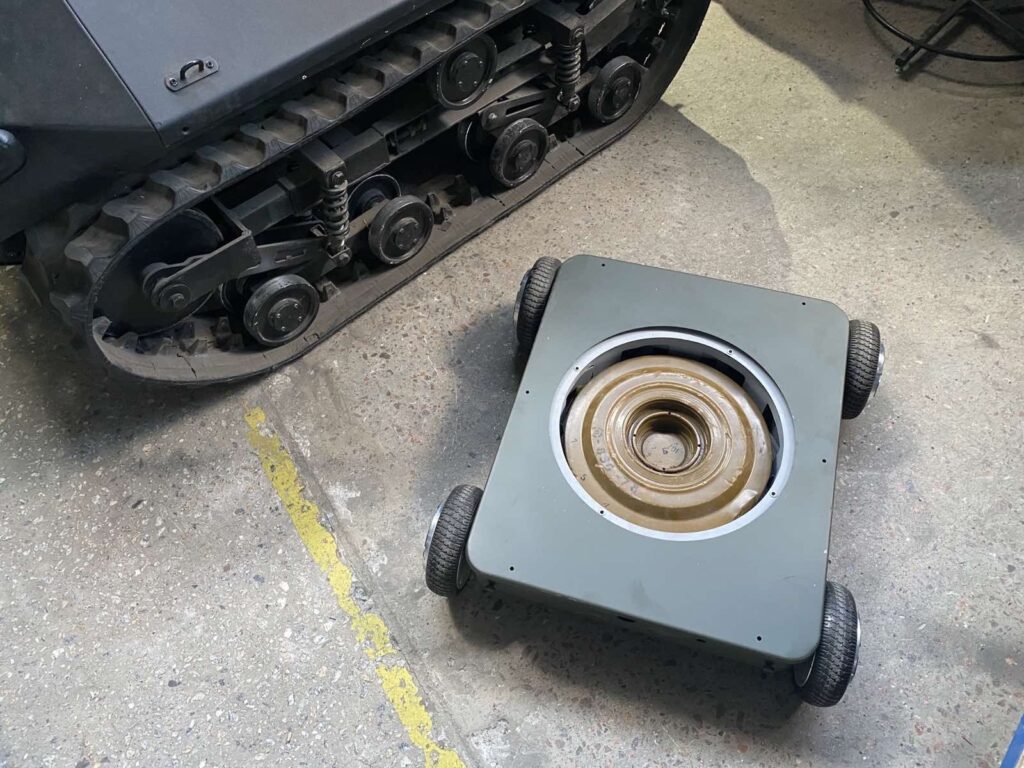

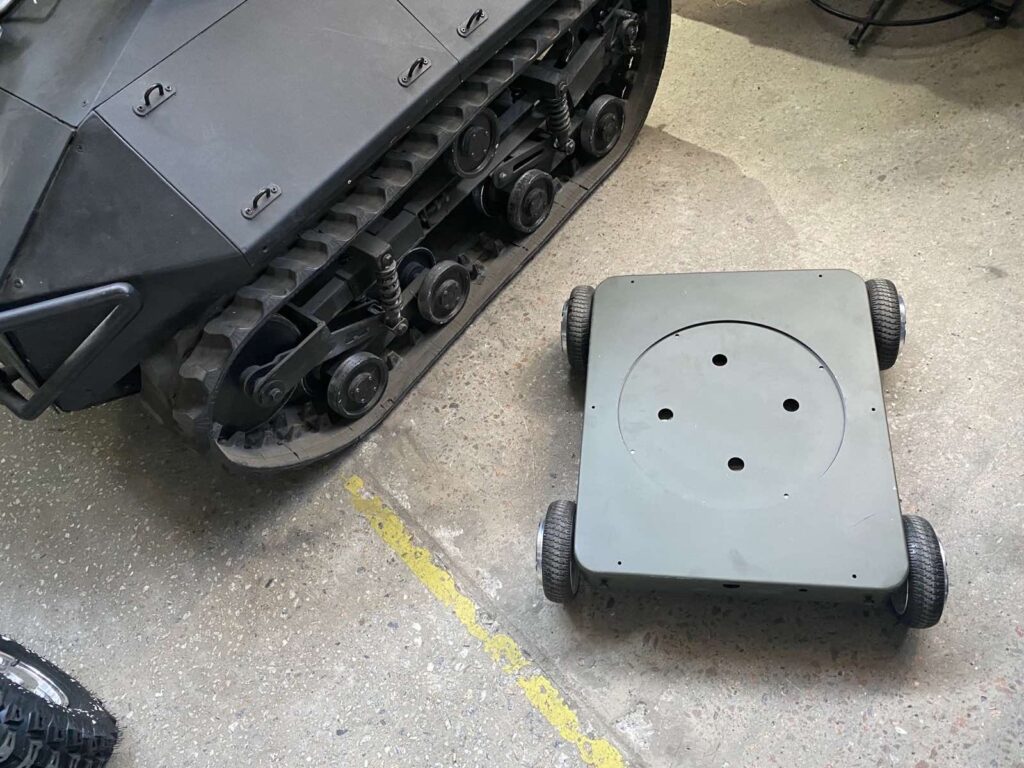

Platform GNOM-kamikaze for anti-tank mine
The main functions of remote-controlled platform:
- Liquidation of light vehicles
- Liquidation of armored vehicles
- Ambushing
- Raids in urban settings
Key Benefits:
- Ultralow ground clearance that enables to move under cars.
- High efficiency undercarriage
- Stealth
- Suddenness
- Noiselessness
| Parameter | Values |
| Undercarriage | wheel, 4 х 4 |
| Drive | electric |
| Height | 165 mm |
| Length | 610 mm |
| Width | 620 mm |
| Clearance | 50 mm |
| Weight (net) | 17kg (without mine) |
| Speed | up to 5.5 km/h |
| Video camera | analog FPV camera with minimal latency |
| Control range: – video image transmission (direct vision) – control commands | – up to 800 m – up to 1500 m (with visibility) |
| Control range via repeater: – video image transmission – control commands | – up to 1500 m – up to 1500 m |
| Battery capacity | 1100 mAh |
| Battery type | Li-ion |
| Battery charge time | 2-2.5 hours. |
| Remote control operating time | Up to 8 hours |
| Operating time of the moving platform | 60-90 min. |
| Temperature range | -20 С° – 40 С° |
Video of GNOM-kamikaze Platform for anti-tank mine
