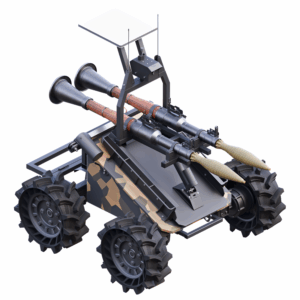

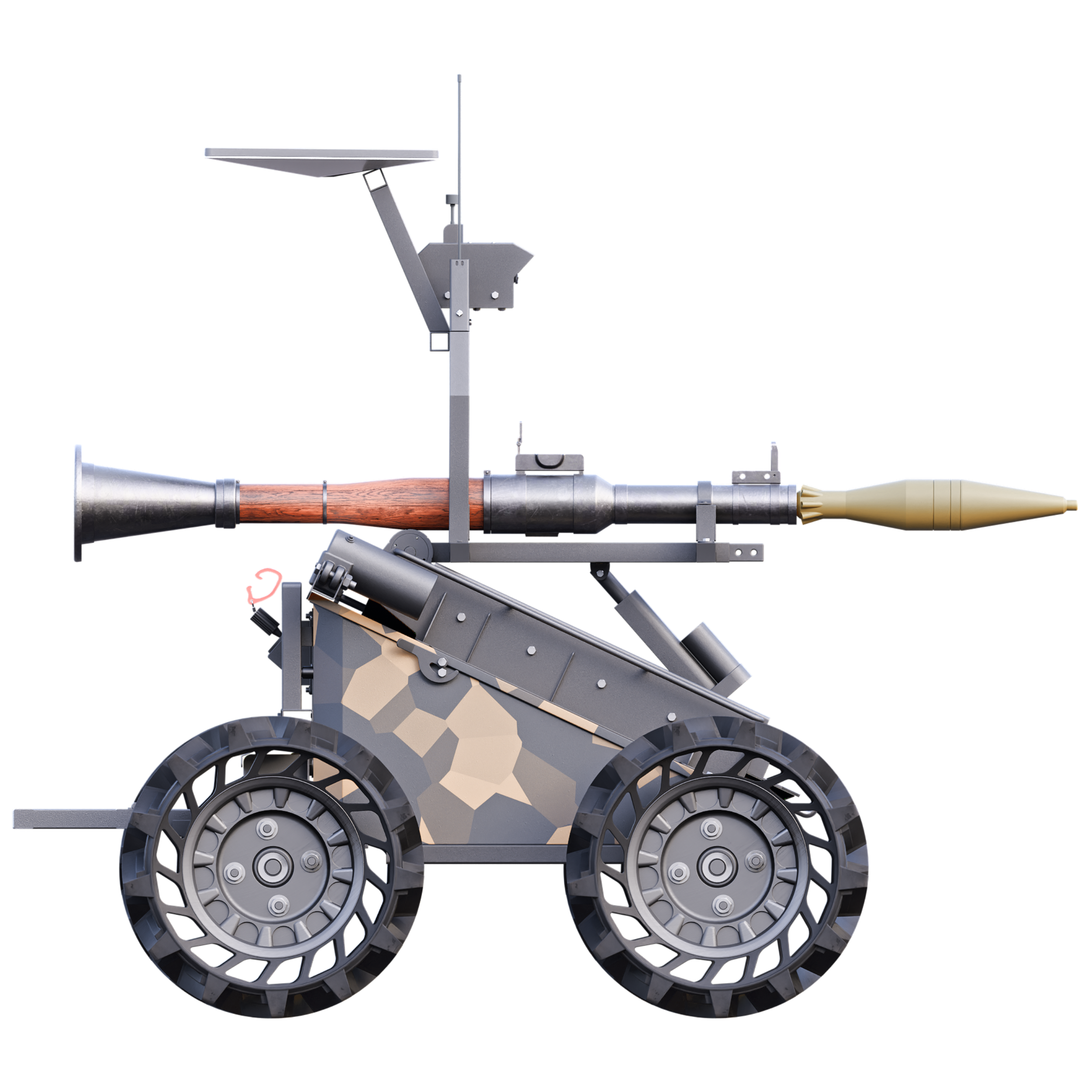

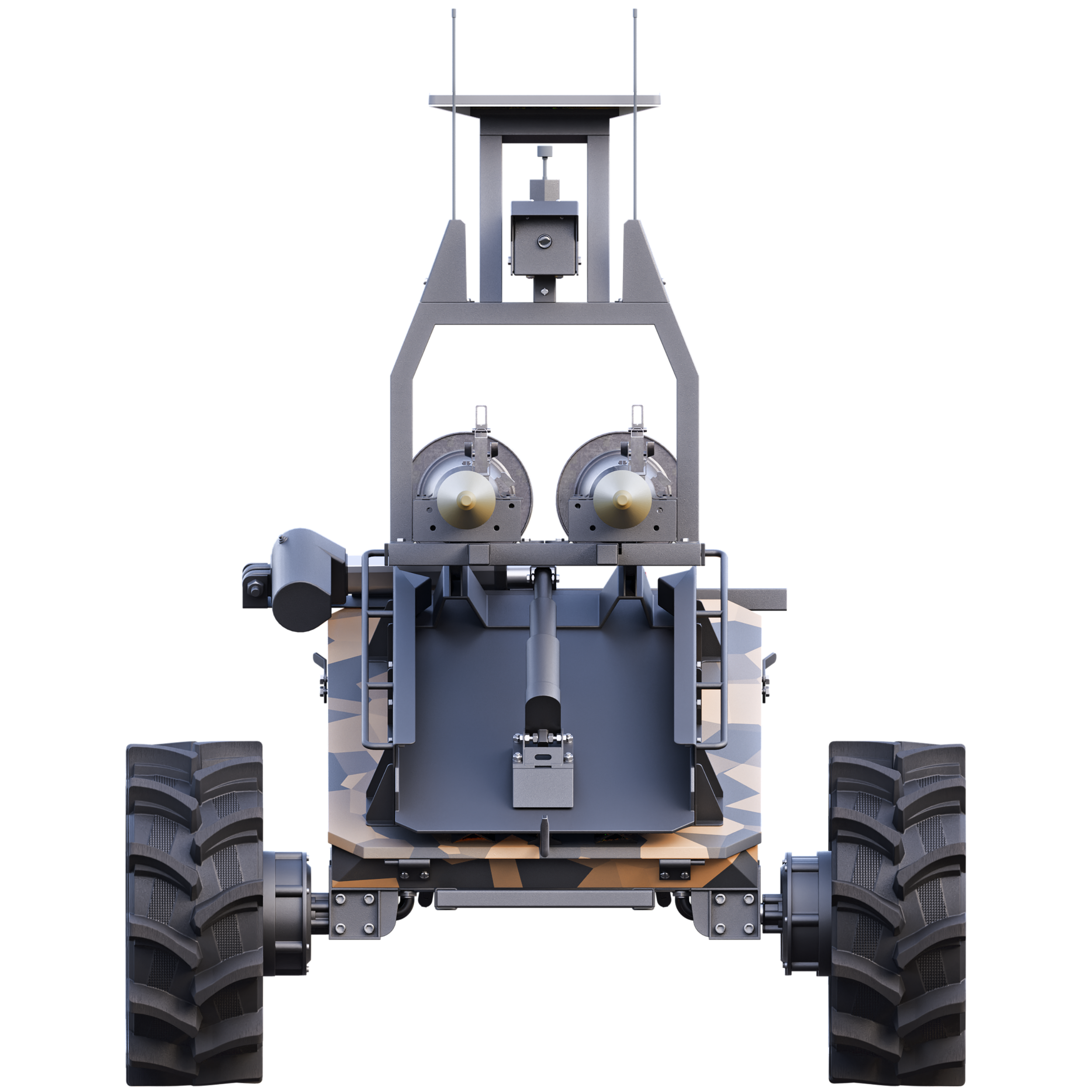

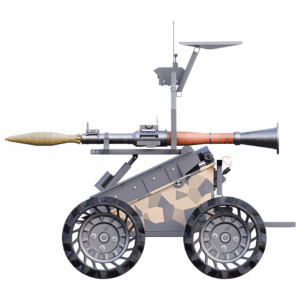

Ground robotized fire support platform Gnom-FS2

UGV Gnom-FS2 designed to inflict fire damage to enemy battle formations, destroy enemy equipment and manpower with two RPG-7, equipped with a viewing camera and an aiming camera (25x zoom), capable of working under the influence of electronic warfare, the range of confident control is 150-200 m.

Platform application allows you:

  • to strengthen the resilience of platoon and company strongholds as remote-controlled means of installing engineering barriers;
  • to increase the degree of contactless combat operations and, as a result, reduce the level of losses due to the possibility of remote control;
  • to reduce the degree of participation of traditional means of destruction and heavy military equipment in the performance of combat missions by barrier units and during raids in the “gray zone”.

The development solves the following problems:

  • Insufficient saturation of the first line units of the defense forces with firepower.
  • High threat to the life and health of personnel during combat missions.
  • Lack of heavy combat equipment.
  • Vulnerability of areas between strongholds and defense areas.

UGV Gnom-FS2 is characterized by low visibility, high cross ability and relatively low weight, ease of use, maintenance and training, and suitability for rapid production scaling and improvements without significant changes in the technological process.

Main technical specifications:
NameValue
Size (L х W х H)1050х747х1057 mm
Speed5,5 km/h
Weight88 kg
Power reserve40 km/h
Clearanceup to 180 mm
Load capacityup to 40 kg
Control rangeup to 2000 m
Temperature range-10 °С … +40 °С
ArmamentPRG-7 – 2 pcs

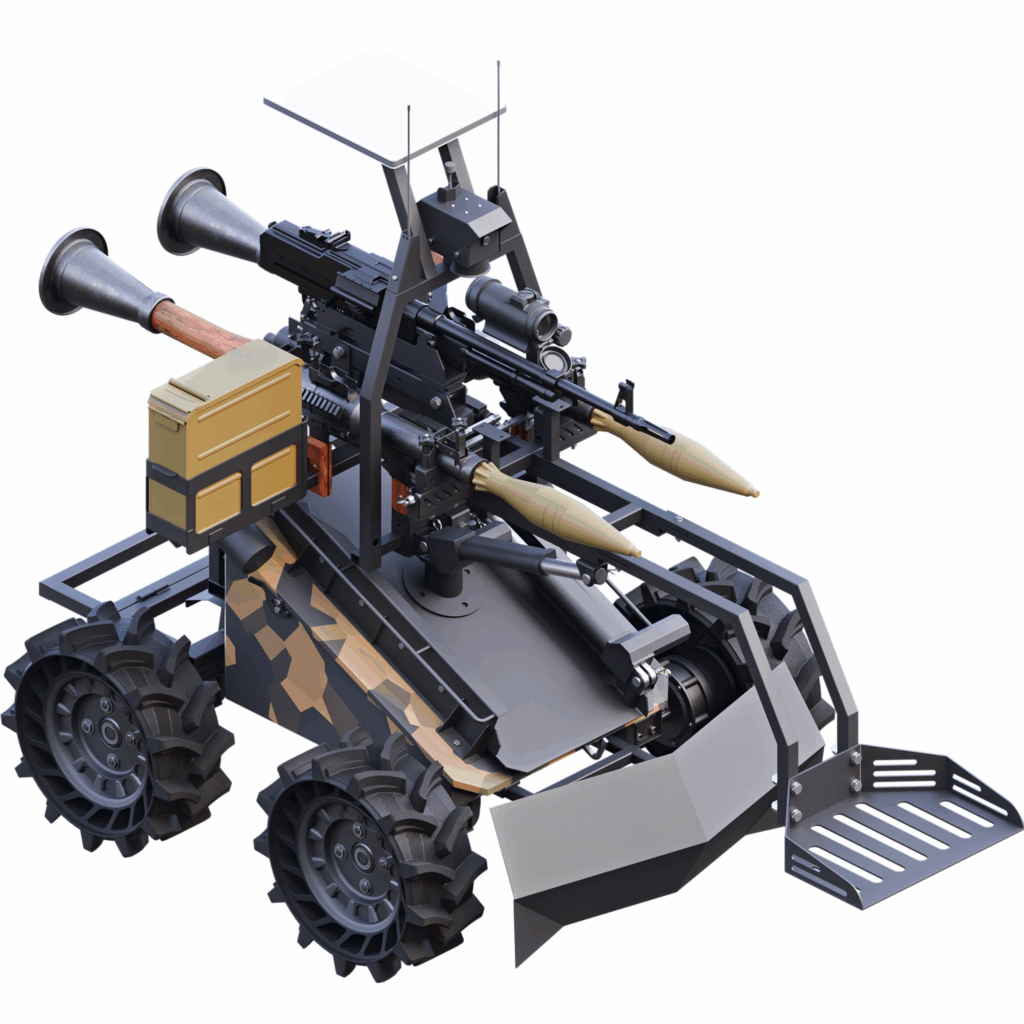

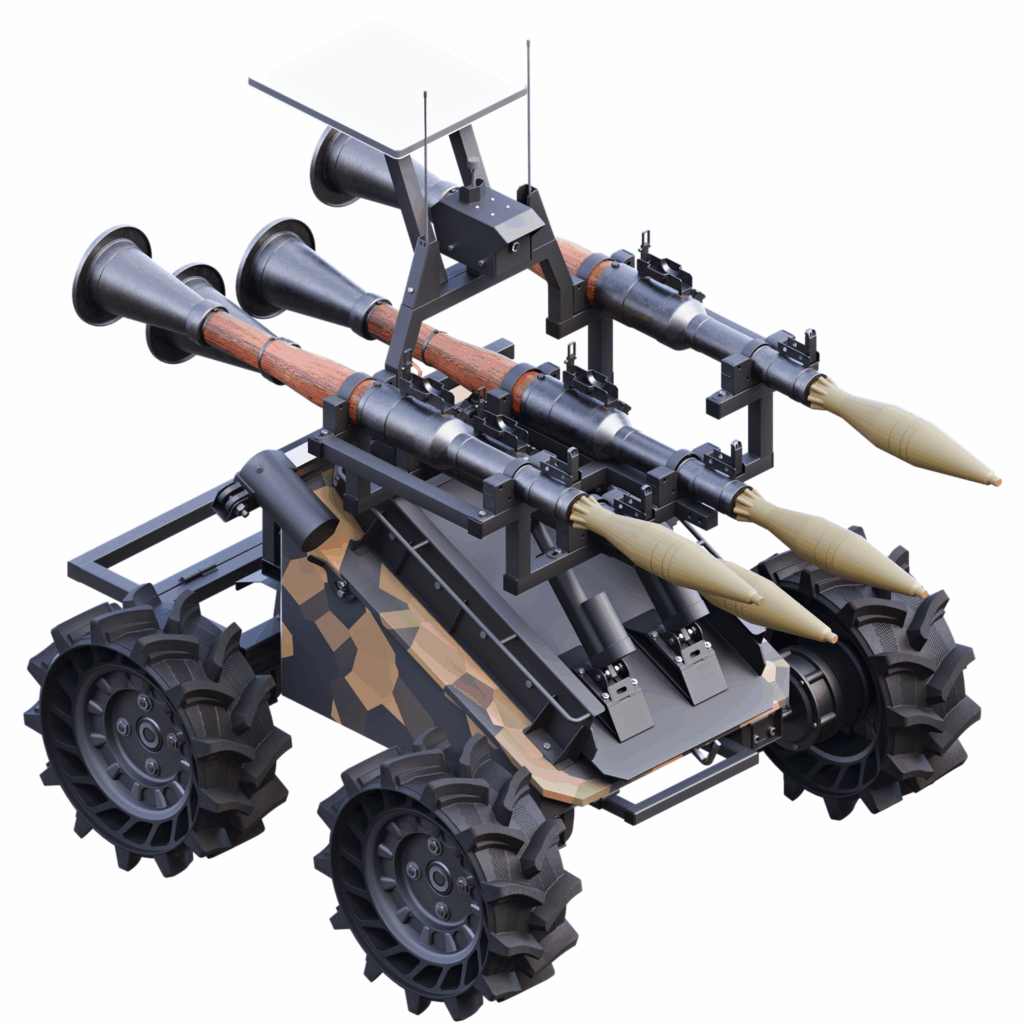

It is also possible to modify with four RPG-7/ two RPG-7 and 7.62 mm machine gun (PKT) and a thermal imager/with four RPG-7 and the possibility of installing two TM-62 mines and one MON-90 mine on the ground.
